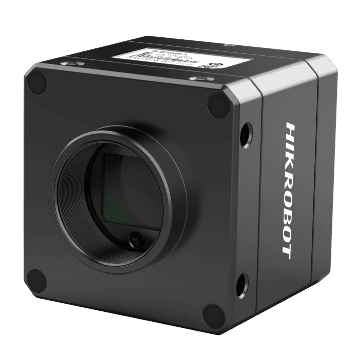

MV-CH250-90XM-C-NN : กล้อง Hikrobot 25MP 1.1″ CMOS CoaXPress Camera

Introduction:

The GMAX0505 sensor in the MV-CH250-90XM camera produces high-quality images. It uses CXP-6 interface to transmit images in real time, and its max. frame rate can reach 41.5 fps in full resolution.

Features:

• Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
• Uses a global shutter CMOS sensor to produce an image with a high dynamic range, SNR, and quality.
• Adopts CXP-6 interface to transmit data.
• Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications:

• Electron semiconductor, PCB AOI, 3D application, motion capture, etc.

Mechanical drawing for MV-CH250-90XM-C-NN
