STC-MBS163U3V

High-performance monochrome CMOS cameras like the Omron STC-MBS163U3V are made for industrial imaging uses. This camera,
which has a 1/2.9 inch 1.58 megapixel monochrome sensor (Sony IMX273), produces images with remarkable quality and speed. Its universal shutter ensures minimal distortion and precise motion capture.

From 238 fps (frame rate priority) and 200.5 fps (image quality priority) at 8-bit output to 118.1 fps at 10-bit output and 157.5 fps at 12-bit packed output, the camera provides a wide range of frame rate choices at full resolution. With a sensitivity of 108 Lux (frame rate priority) and 430 Lux (image quality priority), the adjustable gain, which ranges from 0 dB to 19.2 dB, guarantees excellent image clarity in a variety of lighting situations.

With a USB 3.0 interface for quick data transfer and support for GenICam 2.0 and USB3 Vision® 1.0.1, the STC-MBS163U3V is compatible with a variety of software. For the best results in a variety of applications, the camera also includes sophisticated functions like automatic exposure control, pixel defect correction (up to 2,048 points), multi-ROI (Region of Interest), and image quality modification.

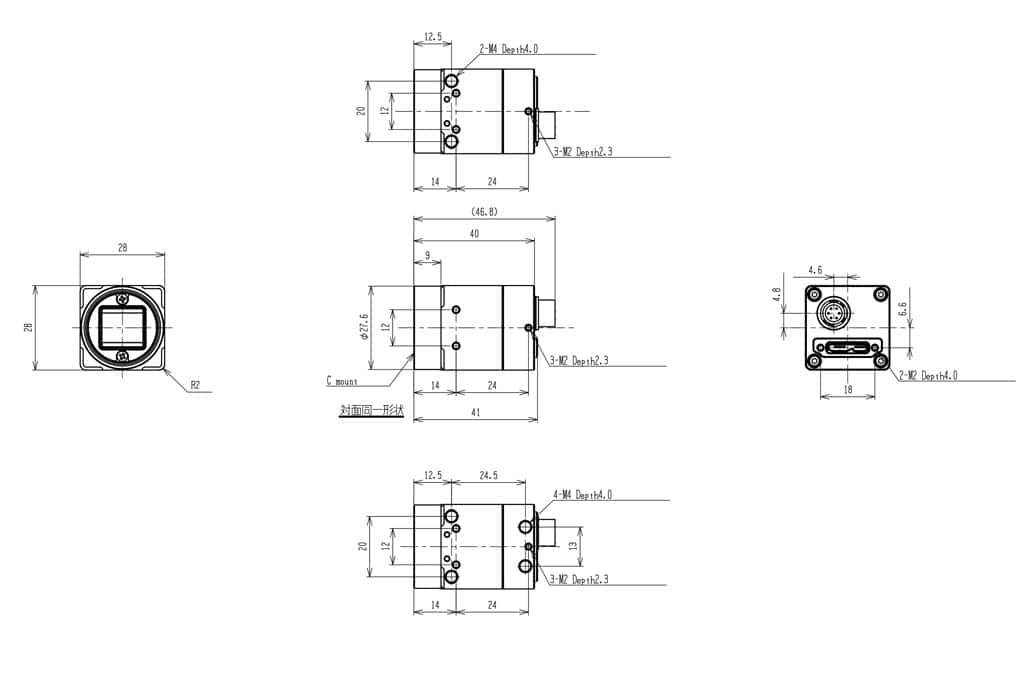

The STC-MBS163U3V has a compact design (28 x 28 x 40 mm) with an aluminum alloy housing. It is designed to tolerate temperatures ranging from -25°C to +70°C and to survive stress and vibration (up to 38G). It uses a maximum of 3.8W and runs on a +5V supply.
