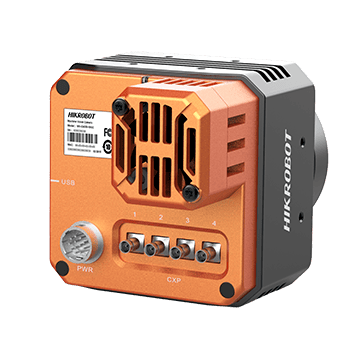

MV-CH650-90XC-M58S-NF : กล้อง Hikrobot 65MP 29.9mm×22.4mm CMOS CoaXPress Camera

Introduction:

The Gpixel GMAX3265 sensor and CXP-6 interface of the MV-CH650-90XC camera enable it to produce high-quality, uncompressed real-time images. In high resolution, it can run at up to 31.5 frames per second.

Features:

• A pixel size of 3.2 3.2 m and a resolution of 9344 x 7000.
• Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality image.
• Adopts CXP-6 interface to transmit data.
• Enables exposure modes of Off, Once, and Continuous.
• Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications:

• Electron semiconductor, PCB AOI, 3D application, motion capture, etc.

Mechanical drawing for MV-CH650-90XC-M58S-NF

M58-mount with fan:
