MV-CH120-40XM-M58S-NN

รหัสสินค้า: MV-CH120-40XM-M58S-NN หมวดหมู่: , , , , ป้ายกำกับ: , , , , ,

MV-CH120-40XM-M58S-NN

(23 บทวิจารณ์จากลูกค้า)

Displayed prices differing from actual price.
Please contact us for quotation.
ติดต่อเรา เพื่อสอบถามราคา

  • 22.5 mm × 16.9 mm, 12MP
  • CMOS, Mono
  • Global, 188 fps
  • CoaXPress (CXP-6)

Download:  MV-CH120-40XM-M58S-NN

Send Inquiry
Send Inquiry
Sensor Size

22.5mm×16.9mm

Sensor Type

CMOS

Color

Mono

Resolution

Shutter

Global

Interface

CoaXPress

Frame rate

188

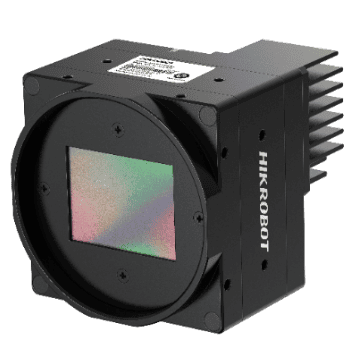

MV-CH120-40XM-M58S-NN : กล้อง Hikrobot 12MP 22.5 mm × 16.9 mm CMOS CoaXPress Camera

The CMOS sensor used in the MV-CH120-40XM camera makes for high-quality images. It transmits uncompressed images in real time through the CXP-6 interface, and its maximum frame rate can reach 188 fps at full resolution.

MV-CH120-40XM-M58S-NNMV-CH120-40XM-M58S-NN

Features:

  • Pixel size of 5.5 5.5 m and resolution of 4096 x 3072.
  • Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality images.
  • Supports LSC sequencer polling function.
  • Adopts the CXP-6 interface for data transmission.
  • Compatible with GenlCam Standard and the CoaXPress Protocol.

Applications:

  • semiconductors, electronics, motion capture, PCB AOI, and other similar fields

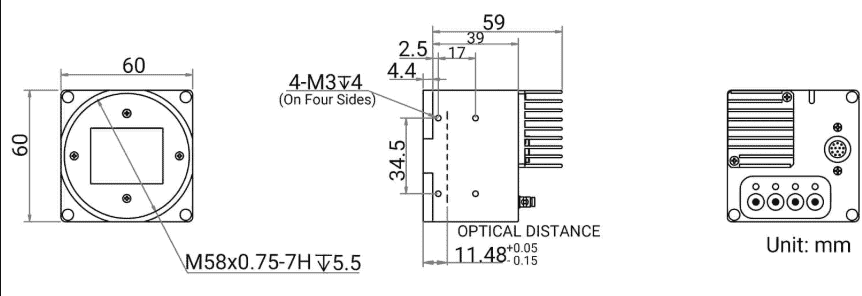

Mechanical drawing for MV-CH120-40XM-M58S-NN
