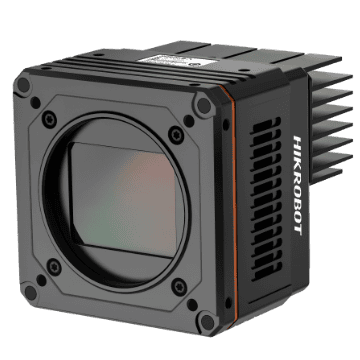

MV-CH1030-90TC-M58S-NN : กล้อง Hikrobot 103MP 46.6mm CMOS GigE Camera

Introduction:

The Gpixel GMAX32103 sensor in the MV-CH1030-90TC camera produces high-quality images. It uses 10 GigE interface to transmit non-compressed image in real time, and its max. frame rate can reach 11 fps in full resolution.

Features:

• Resolution of 11276 × 9200, pixel size of 3.2 μm × 3.2 μm.
• Supports auto or manual adjustment of exposure time and white balance, and manual adjustment of gain, Gamma correction, LUT, etc.
• Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
• Adopts holes for installation, allowing for adaptability.
• Compatible with GenlCam Standard, GigE Vision Protocol V2.0, and protocol-based software from third parties.

Applications:

• PCB AOI, FPD, railway related applications, PV, etc.

Mechanical drawing for MV-CH1030-90TC-M58S-NN
