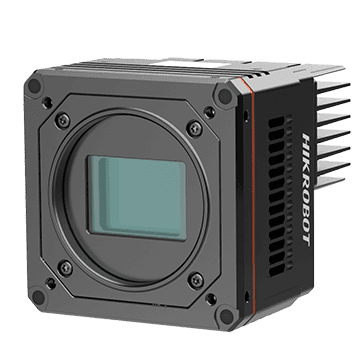

The technical foundation of the MV-CH250-20XM-M58S-NN is built upon the high-performance OnSemi Python25K sensor. This 23mm × 23mm CMOS sensor is a powerhouse in the industrial imaging world, providing a unique square aspect ratio that is ideal for semiconductor and FPD (Flat Panel Display) inspection. By utilizing a Global Shutter architecture, the camera ensures that moving objects are captured without any geometric distortion, delivering a consistent and high-quality image output at a maximum frame rate of 79.9 fps even at its full 5120 × 5120 resolution.

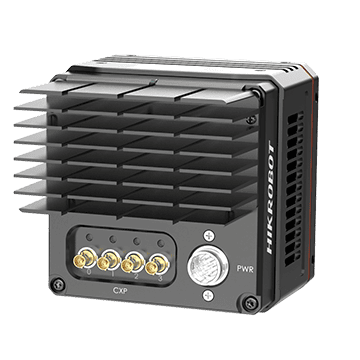

Beyond raw speed, data integrity is paramount in critical manufacturing sectors. The MV-CH250-20XM-M58S-NN adheres strictly to the CoaXPress Protocol and the GenICam Standard, ensuring seamless compatibility with a wide range of professional third-party software libraries such as MVTec HALCON and Cognex VisionPro. This open-standard approach allows engineers to integrate the camera into complex multi-camera systems with ease, reducing development time and ensuring long-term reliability in smart factory environments.
Strategic Industry Applications and Performance Metrics
In the semiconductor and electronics industry, detecting microscopic defects on large PCB (Printed Circuit Board) panels is a monumental task. The 25MP resolution of the MV-CH250-20XM-M58S-NN provides a massive field of view while maintaining a high pixel density per millimeter. This enables Automated Optical Inspection (AOI) systems to identify solder bridges, missing components, and hairline fractures across a broader area in a single shot, significantly increasing the overall throughput of the production line.
The square sensor format of 23mm × 23mm specifically benefits lens selection and optical path design. By utilizing the M58 mount, the MV-CH250-20XM-M58S-NN allows engineers to use high-quality industrial lenses that provide uniform resolution from the center to the edges. This is particularly vital in Flat Panel Display (FPD) inspection, where uniformity across the entire frame is required to detect dead pixels and color consistency issues across large-scale liquid crystal panels or OLED displays.

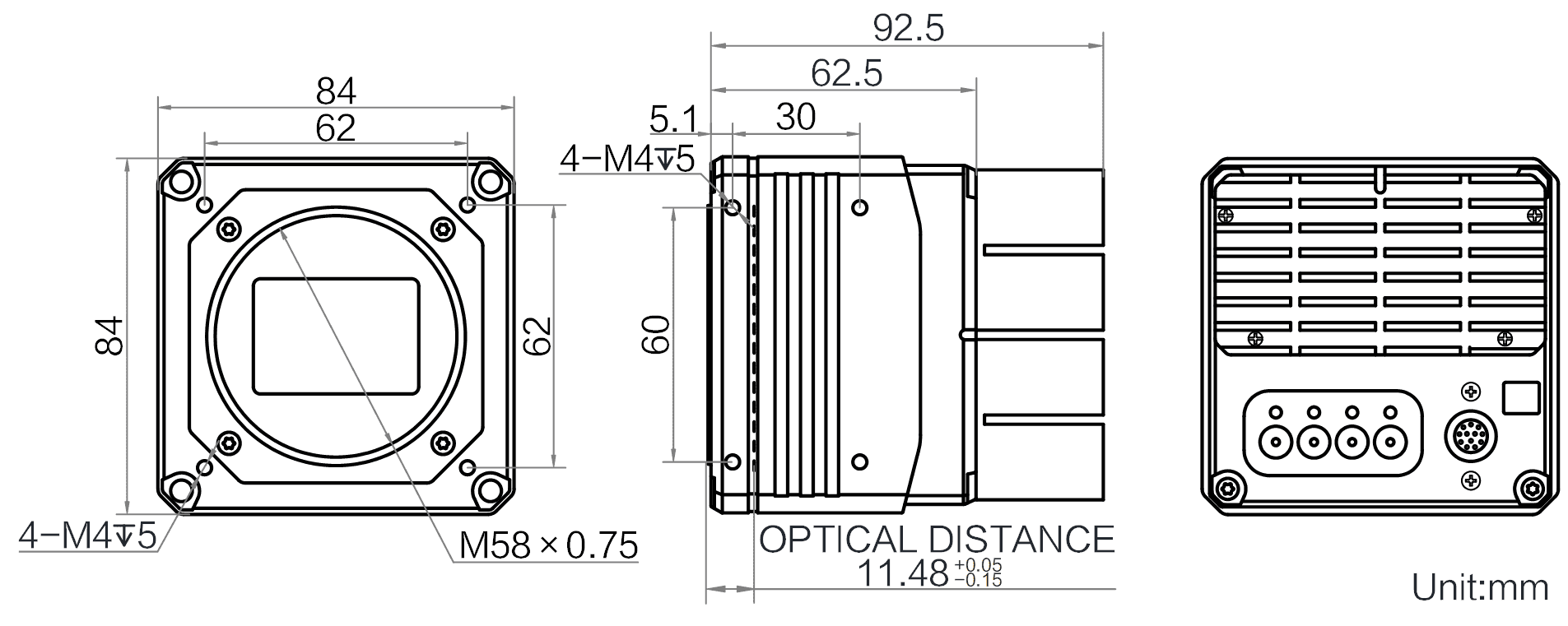

When it comes to integration, the compact yet rigid housing features standardized mounting holes that simplify installation into tight mechanical assemblies or robotic arms. The MV-CH250-20XM-M58S-NN provides various triggering modes, including hardware trigger, software trigger, and free-run mode, giving developers total control over the image acquisition timing. This flexibility is essential for synchronizing the camera with strobed lighting systems or laser line projectors in high-end 3D vision applications.
การลงทุนในเทคโนโลยีที่ล้ำสมัยอย่าง MV-CH250-20XM-M58S-NN คือการเตรียมความพร้อมสำหรับยุค Industry 4.0 ที่ข้อมูลภาพคือหัวใจของปัญญาประดิษฐ์และการวิเคราะห์ข้อมูลขนาดใหญ่ การได้รับภาพดิบที่มีความละเอียดสูงและไม่มีการบีบอัดช่วยให้อัลกอริทึม Deep Learning สามารถเรียนรู้และคัดกรองความผิดปกติได้อย่างแม่นยำยิ่งขึ้น ส่งผลให้ธุรกิจสามารถลดต้นทุนจากการสูญเสียและเพิ่มขีดความสามารถในการแข่งขันได้ในระยะยาว
In summary, the combination of high frame rates, a massive square sensor, and uncompressed data transmission makes this device a top-tier choice for any mission-critical vision system. The MV-CH250-20XM-M58S-NN stands as a testament to Hikrobot’s commitment to delivering professional-grade imaging solutions that meet the most demanding requirements of modern automation. Whether you are upgrading an existing AOI station or designing a new semiconductor inspection machine, this camera provides the visual fidelity and mechanical reliability needed to succeed.
