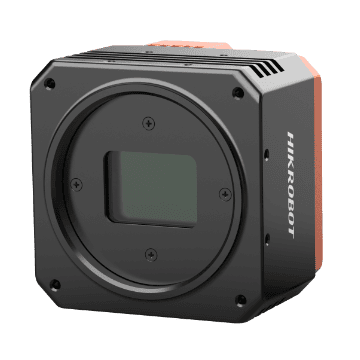

MV-CH120-15TM-M58S-NF : กล้อง Hikrobot 12MP 1/1″ CMOS GigE Camera

Introduction:

The Sony IMX253 sensor in the MV-CH120-15TM camera produces images of high quality with high resolution and low noise. It transmits uncompressed data in real time through a 10 GigE interface, and its maximum frame rate in full resolution can reach 68.3 fps.

• A pixel size of 3.45 m and a resolution of 4096 3000.
• Enables gain, exposure time, Gamma correction, LUT, and other settings to be adjusted automatically or manually.
• Adopts a 10 GigE interface with a maximum transmission distance of 100 meters and compatibility with GigE.
• Design that is small and has panels with holes for easy mounting.
• Compatible with GigE Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications:

• SMT/PCB AOI, FPD, applications related to the railway, etc.

Mechanical drawing for MV-CH120-15TM-M58S-NF
