STC-MBPL510U3V

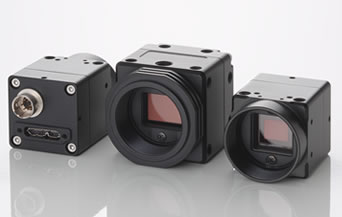

A 5.1-megapixel monochrome USB 3.0 area scan camera with an incorporated polarization sensor is the Omron Sentech STC-MBPL510U3V. It is made for sophisticated industrial imaging applications and uses Sony’s IMX250MZR CMOS sensor to record polarization data, which allows for improved contrast and material distinction in difficult-to-reach places.

Key Specifications:

• Sensor: Sony IMX250MZR CMOS (Polarization)
• Resolution: 2448 × 2048 pixels (5.1 MP)
• Pixel Size: 3.45 µm × 3.45 µm
• Sensor Format: 2/3″
• Shutter Type: Global shutter
• Frame Rate: Up to 75.7 fps
• Interface: USB 3.0 (USB3 Vision compliant)
• Lens Mount: C-mount
• Dimensions: 35 mm × 35 mm × 41.5 mm

Features:

• Integrated Polarization Sensor: Enhances image contrast and reveals surface features not visible with standard imaging.
• High-Speed Data Transfer: USB 3.0 interface ensures rapid image transmission and easy integration.
• Global Shutter: Captures sharp images of fast-moving objects without distortion.
• Compact Design: Facilitates installation in space-constrained environments.
