      r2L16384-120cm
      รหัสสินค้า: r2L16384-120cm หมวดหมู่: , , , ป้ายกำกับ: , , , , ,

      r2L16384-120cm

      (9 บทวิจารณ์จากลูกค้า)

      Displayed prices differing from actual price.
      Please contact us for quotation.
      ติดต่อเรา เพื่อสอบถามราคา

      • 16K, 16K
      • CMOS, Mono
      • Global, 120 fps
      • CoaXPress (CXP-12)

      Download:   r2L16384-120cm

      Add to Wishlist
      Send Inquiry
      Send Inquiry
      Sensor Size

      16K

      Sensor Type

      CMOS

      Color

      Mono

      Resolution

      Shutter

      Global

      Interface

      CoaXPress

      Frame rate

      120

      r2L16384-120cm

      r2L16384-120cm : racer 2 L

      The GPixel GL3516 CMOS line scan sensor in the Basler r2L16384-120cm CoaXPress 2.0 camera provides 120 kHz at 16k resolution.

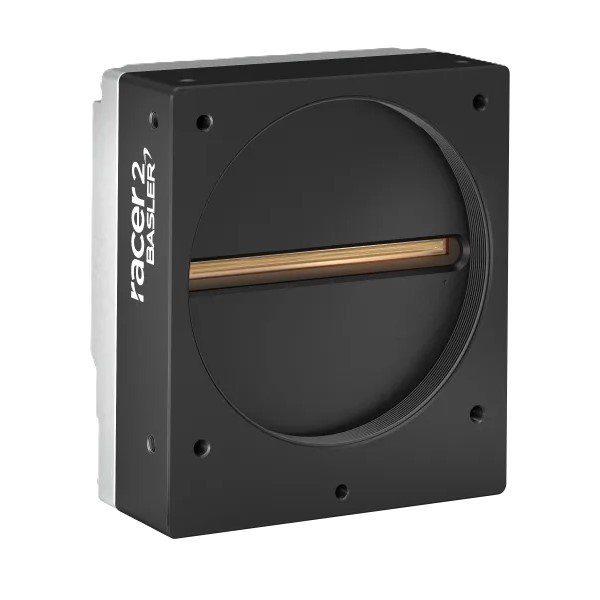

      racer 2 L

      Basler r2L16384-120cm CoaXPress 2.0 camera

      The Basler racer 2 L series high-end line scan cameras are designed for applications requiring high processing capacity and image quality, such as quality control of batteries and other industrial processes. These cameras offer high-quality monochrome images, with resolutions of 8k or 16k, and a CoaXPress 2.0 (CXP-12) interface, achieving speeds of up to 120 or 200 kHz.

      Main features of racer 2 line scan cameras:

      • Available with 8k or 16k resolution (monochrome)
      • Maximum line speed of 120 or 200 kHz
      • Line scan technology, capturing one row of pixels at a time
      • Suitable for inspection of battery foil, PCBs, textiles, etc.
      • CoaXPress 2.0 interface (CXP-12) supports speeds up to 25 Gbps
      • Power via the same cable (PoCXP)
      • Cables up to 40 meters for flexible installation
      • Reduced CPU load due to internal CXP-12 frame grabber
      • Easily configurable via Basler pylon software
      • Lens mount: M72 x 0.75

      Mechanical drawing for r2L16384-120cm

      r2L16384-120cm drawing
