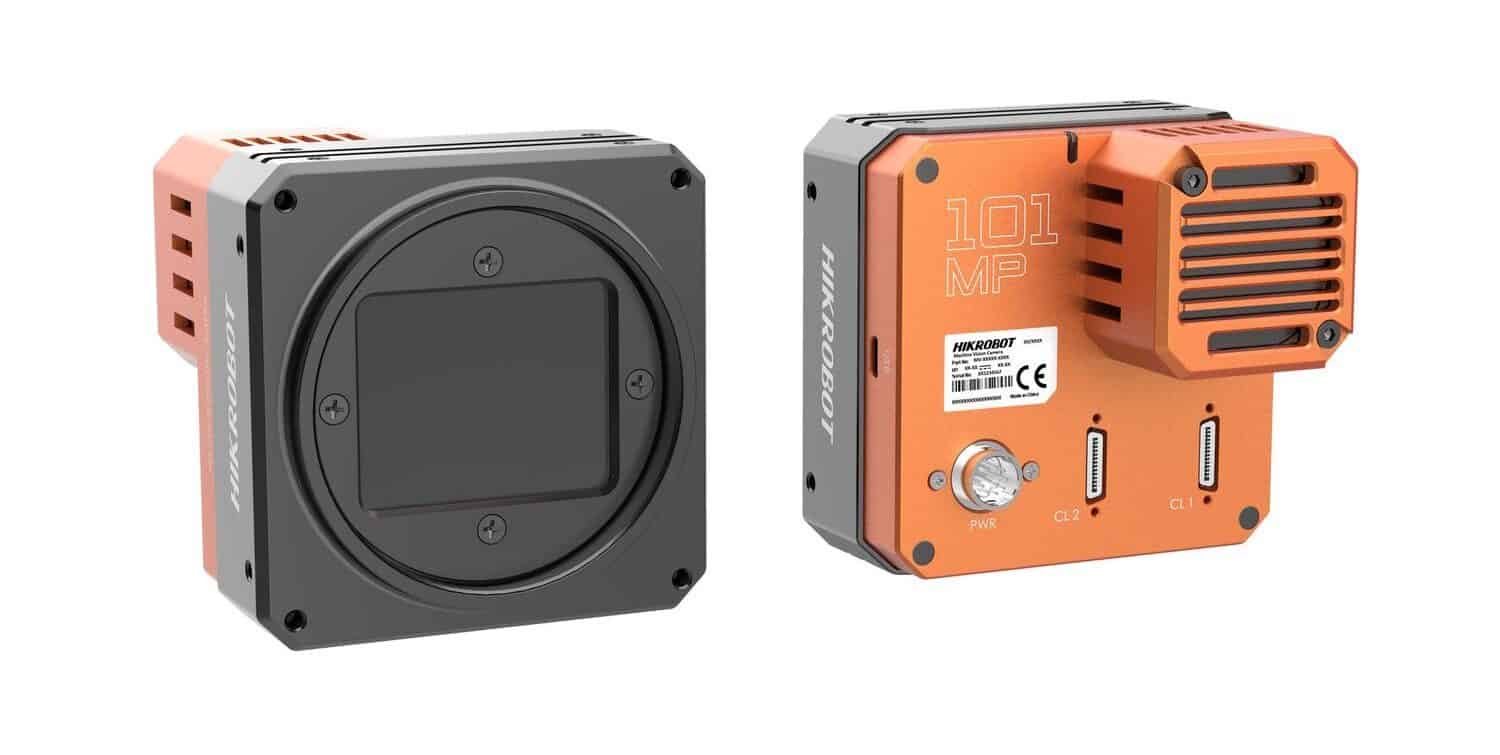

MV-CH1010-10CM-M72-NF : กล้อง Hikrobot 101MP 55mm CMOS CameraLink Camera

Introduction:

MV-CH1010-10CM camera adopts Sony IMX461 sensor to provide high-quality images. It uses Camera Link interface to transmit non-compressed images in real time, and its max. frame rate can reach 8.1 fps in full resolution.

Features:

• Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
• Supports FFC correction function.
• Provides camera with fan or TEC to meet different working temperature requirements.
• Supports 16-bit ADC output with high acquisition accuracy and wide dynamic range.
• Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
• Compatible with the GenlCam Standard, Camera Link V2.0 Protocol, and software for grabbing frames that conforms to the GenICam Protocol.

Applications:

• FPD detection, PCB AOI, file scanning, etc.

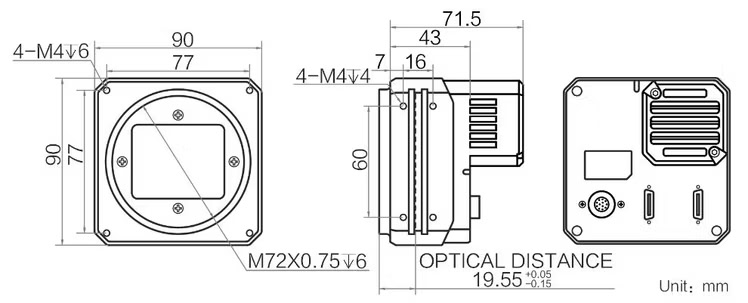

Mechanical drawing for MV-CH1010-10CM-M72-NF
