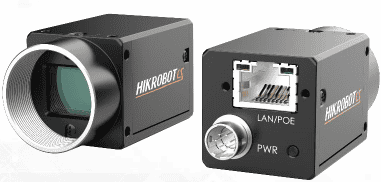

MV-CS016-10GC : กล้อง Hikrobot 1.6 MP 1/2.9″ CMOS GigE Camera

Introduction:

The Sony IMX296 sensor in the MV-CS016-10GC camera ensures a high-quality image. It uses GigE interface to transmit non-compressed images in real time, and its max. frame rate can reach 65.2 fps in full resolution

Features:

• Adopts brand new design to reduce power consumption.
• Panels have mounting holes on the compact design, allowing for flexible mounting from four sides.
• Supports noise reduction and color correction matrix function.
• Enables gain, exposure time, LUT, Gamma correction, white balance, and other settings to be adjusted automatically or manually.
• Utilizes the GigE interface, allowing for a maximum transmission distance of 100 meters with no relay.
• Compatible with third-party software that is based on the GigE Vision V2.0 Protocol and GenlCam Standard.

Applications:

• Consumer electronics, electrical semiconductors, image measurement, and SMT/PCB AOI are just a few examples.

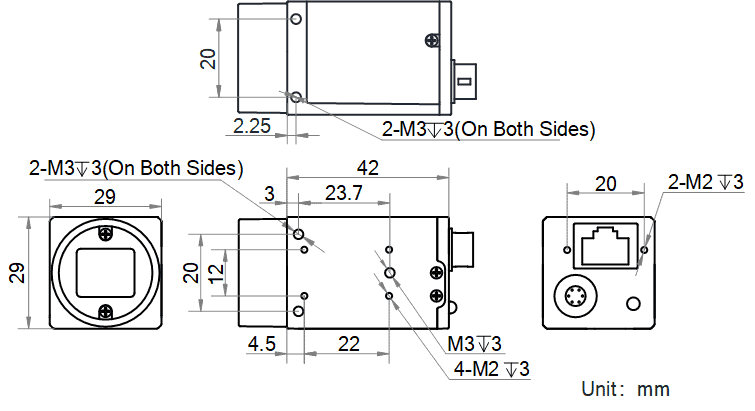

Mechanical drawing for MV-CS016-10GC
