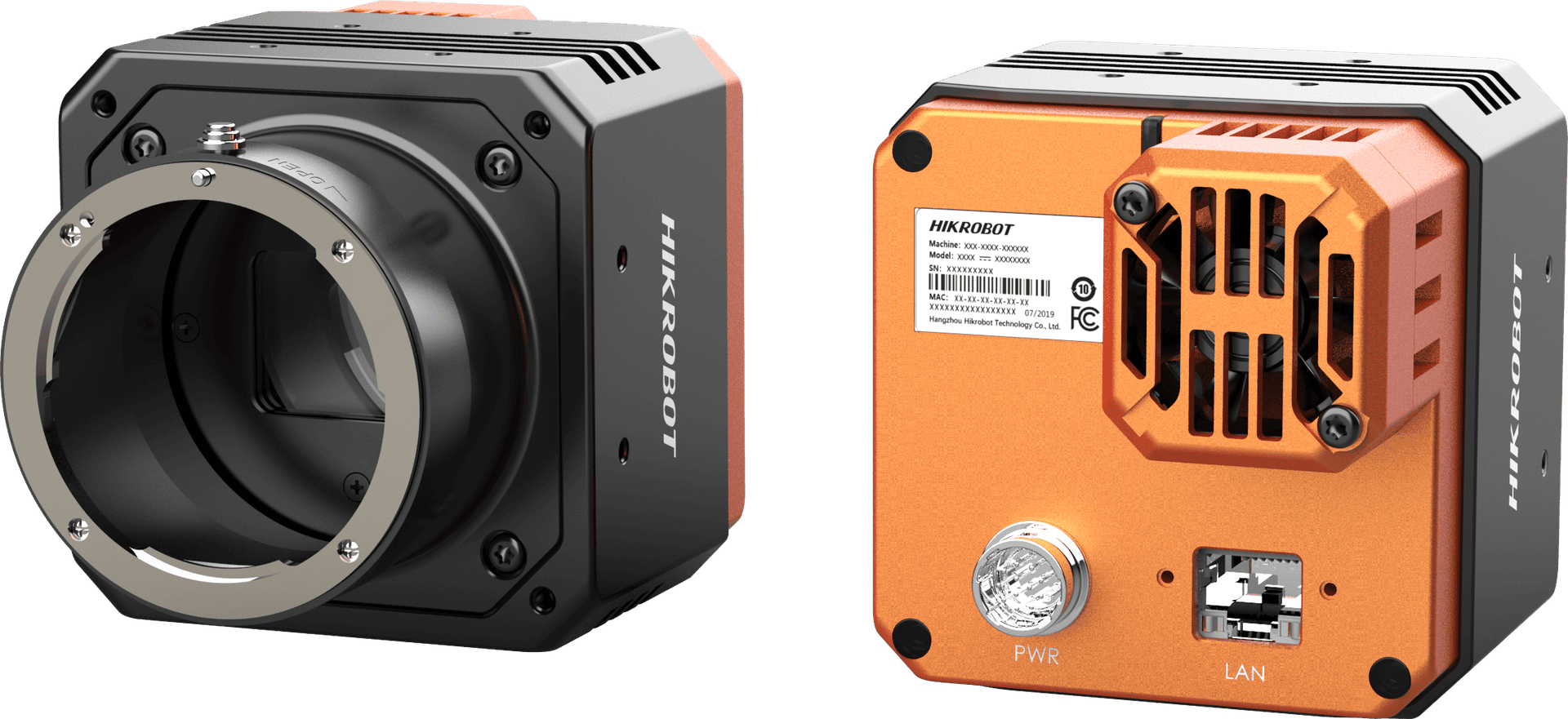

MV-CH650-90TM-F-NF : กล้อง Hikrobot 65MP 29.9mm×22.4mm CMOS GigE Camera

Introduction:

The Gpixel GMAX3265 sensor in the MV-CH650-90TM camera produces high-quality images. It transmits uncompressed images in real time through a 10 GigE interface, and its maximum frame rate can reach 17.2 fps at full resolution.

Features:

• Resolution of 9344 × 7000, and pixel size of 3.2 μm × 3.2 μm.
• Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
• Enables automatic or manual adjustment of gain, exposure time, and the Look-Up Table (LUT), Gamma correction, and other parameters.
• Compatible with GenlCam Standard, GigE Vision Protocol V2.0, and protocol-based software from third parties.

Applications:

• PCB AOI, FPD, railway related applications, PV, etc.

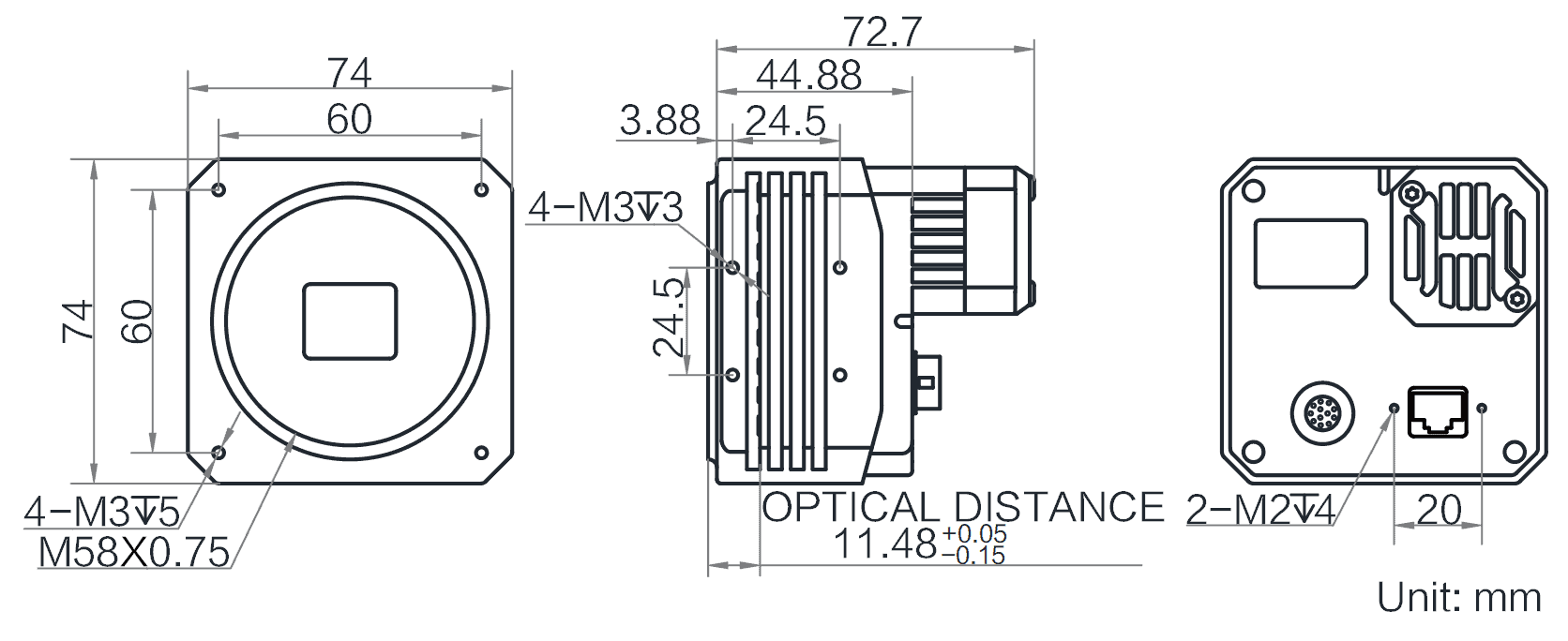

Mechanical drawing for MV-CH650-90TM-F-NF

F-mount with fan:
