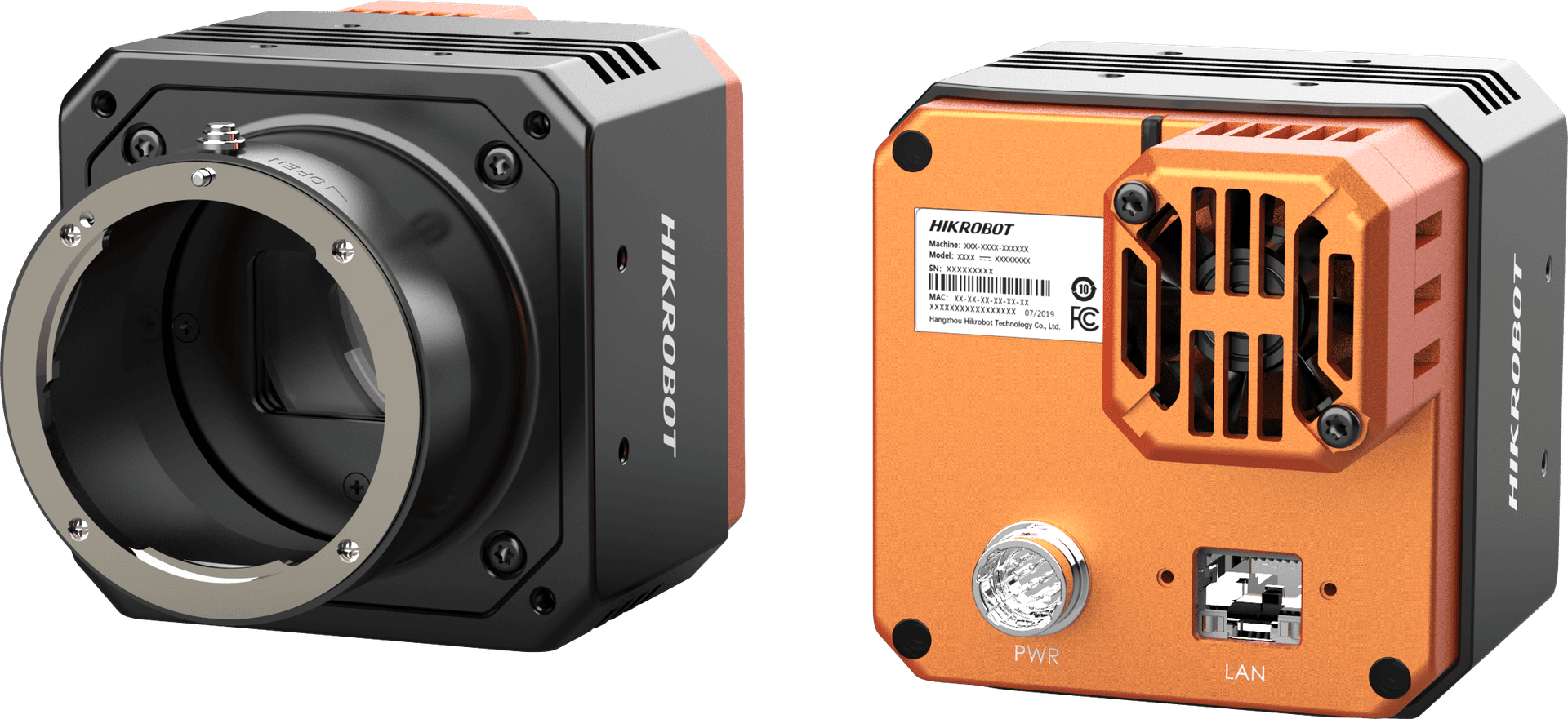

MV-CH250-60TM-M58S-NF : กล้อง Hikrobot 25MP 23mm×23mm CMOS GigE Camera

Introduction:

The CMOS sensor in the MV-CH250-60TM camera produces images of high quality with high resolution and low noise. It uses 10 GigE interface to transmit non-compressed data in real time, and its max. frame rate can reach 31.7 fps in full resolution.

Features:

• A pixel size of 4.5 4.5 m and a resolution of 5120 5120.
• Supports auto or manual adjustment of exposure time, and manual adjustment of gain, Gamma correction, LUT, etc.
• Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
• Compact design with mounting holes on panels for flexible mounting.
• Compatible with third-party software that is based on the GigE Vision V2.0 Protocol and GenlCam Standard.

Applications:

• Photovoltaics, PCB AOI, FPD detection, and other railway-related applications

Mechanical drawing for MV-CH250-60TM-M58S-NF
