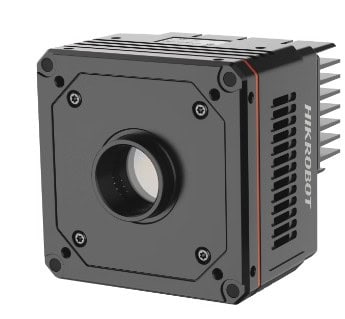

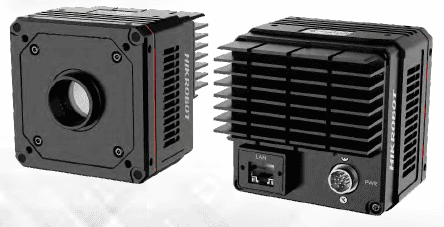

MV-CH240-10TM-C-NN : กล้อง Hikrobot 24MP 1.2″ CMOS GigE Camera

Introduction:

The Sony IMX540 sensor in the MV-CH240-10TM camera produces images of high quality with high resolution and low noise. It transmits uncompressed data in real time through a 10 GigE interface, and its maximum frame rate can reach 35.1 fps in full resolution.

Features:

• Resolution of 5328 × 4600, and pixel size of 2.74 μm × 2.74 μm.
• Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
• Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
• Compact design with mounting holes on panels for flexible mounting.
• Compatible with third-party software that is based on the GigE Vision V2.0 Protocol and GenlCam Standard.

Applications:

• Photovoltaics, consumer electronics, semiconductors and electronics, railway applications, etc.

Mechanical drawing for MV-CH240-10TM-C-NN
