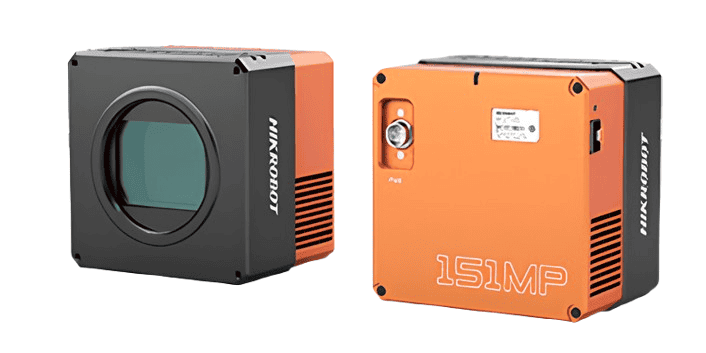

MV-CH1510-10FM-M72-TF : กล้อง Hikrobot 151MP 66.7mm CMOS GigE Camera

Introduction:

The Sony IMX411 sensor in the MV-CH1510-10FM camera produces high-quality images. It transmits uncompressed data in real time through a 10 GigE interface, and its maximum frame rate can reach 6.2 fps at full resolution.

Features:

• Binning, LSC Sequencer, FFC, and other ISP functions are supported.
• Adopts 10GigE over Fiber interface to transmit data, and max. transmission distance reaches 300 m.
• Utilizes TEC technology to ensure high-quality images under prolonged exposure conditions and to reduce sensor temperature.
• Compatible with third-party software that is based on the GigE Vision V2.0 Protocol and GenlCam Standard.

Applications:

• PCB AOI, FPD, astronomy surveying and mapping, railway related application, etc.

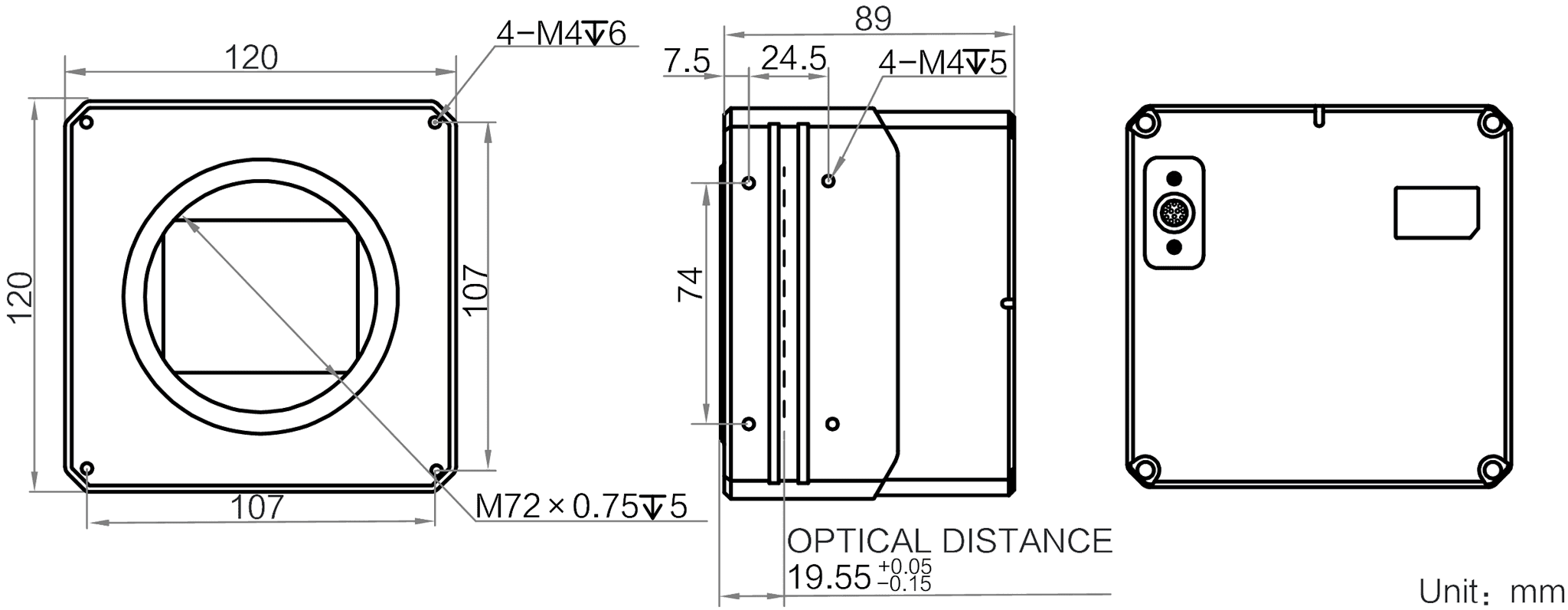

Mechanical drawing for MV-CH1510-10FM-M72-TF
