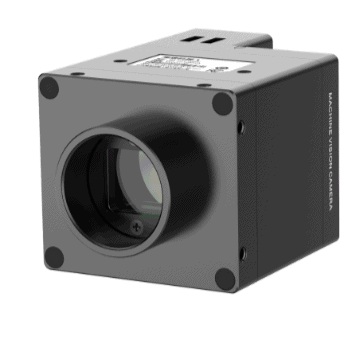

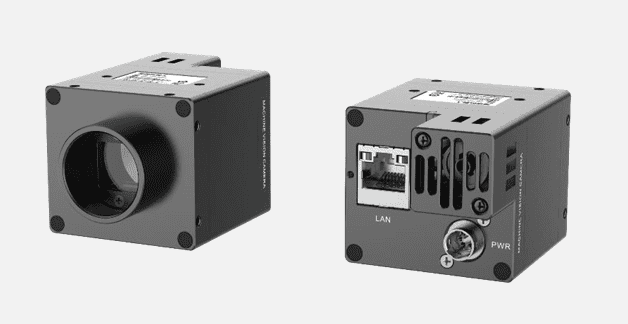

MV-CH120-90TM-C-NF : กล้อง Hikrobot 12MP 1/1″ CMOS GigE Camera

Introduction:

The Gpixel GMAX3412 sensor in the MV-CH120-90TM camera produces high-quality images. It transmits uncompressed images in real time through a 10 GigE interface, and its maximum frame rate can reach 94 fps at full resolution.

Features:

• Pixel size of 3.4 3.4 m and resolution of 4096 x 3072.
• Compatible with lenses with a C-mount
• Utilizes a 10 GigE interface with a 100-meter transmission distance maximum.
• Provides panels with mounting holes for adaptable installation.
• Compatible with GenlCam Standard, GigE Vision Protocol V2.0, and protocol-based software from third parties.

Applications:

• SMT/PCB AOI, FPD, railway industry, lithium battery, photovoltaics, etc.

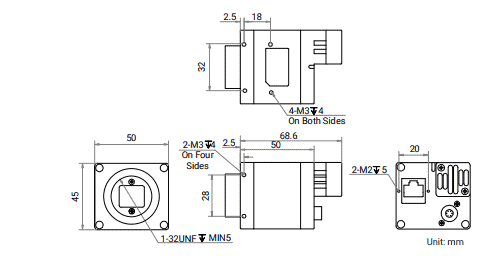

Mechanical drawing for MV-CH120-90TM-C-NF
