MV-CH050-90Y1M-NN : กล้อง Hikrobot 5MP 2/3″ CMOS CoaXPress Camera

Introduction:

The Gpixel GMAX3405 sensor in the MV-CH050-90Y1M camera produces high-quality images. It transmits non-compressed images in real time through a one-link CXP12 interface, and its maximum frame rate can reach 164 fps at full resolution.

Features:

• Resolution of 2448 × 2048, pixel size of 3.4 µm × 3.4 µm.
• Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
• Adopts CXP-12 interface to transmit data.
• Supports Off, Once, and Continuous exposure modes.
• Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications:

• Electron semiconductor, motion capture, PCB AOI, and other applications in 3D

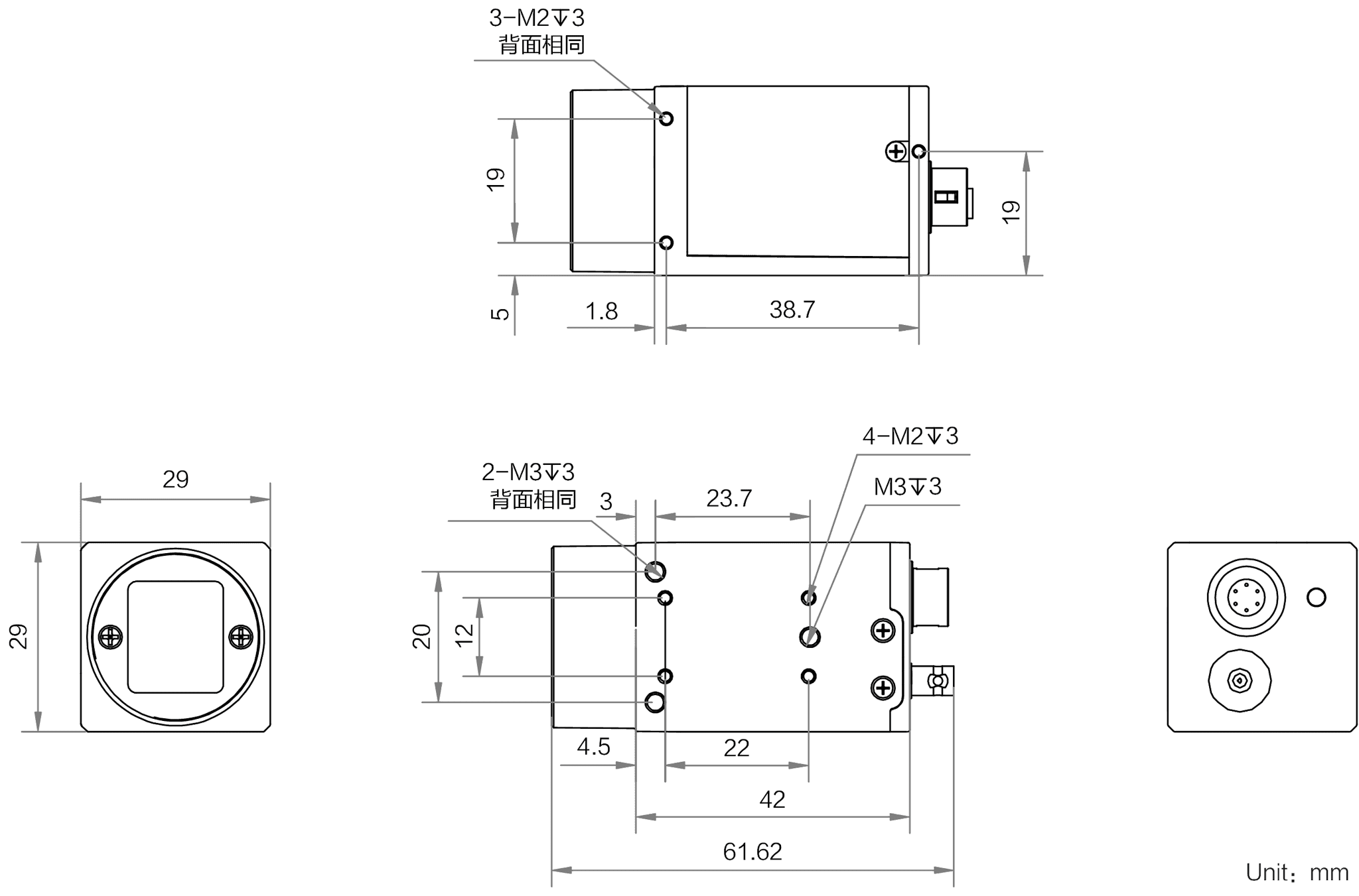

Mechanical drawing for MV-CH050-90Y1M-NN
