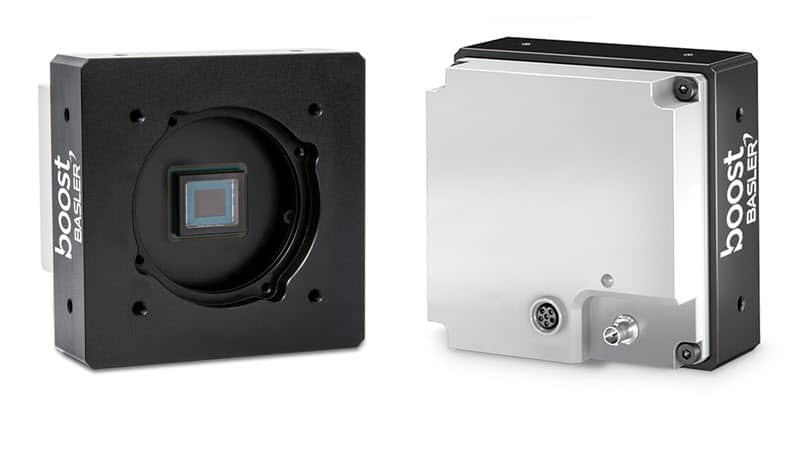

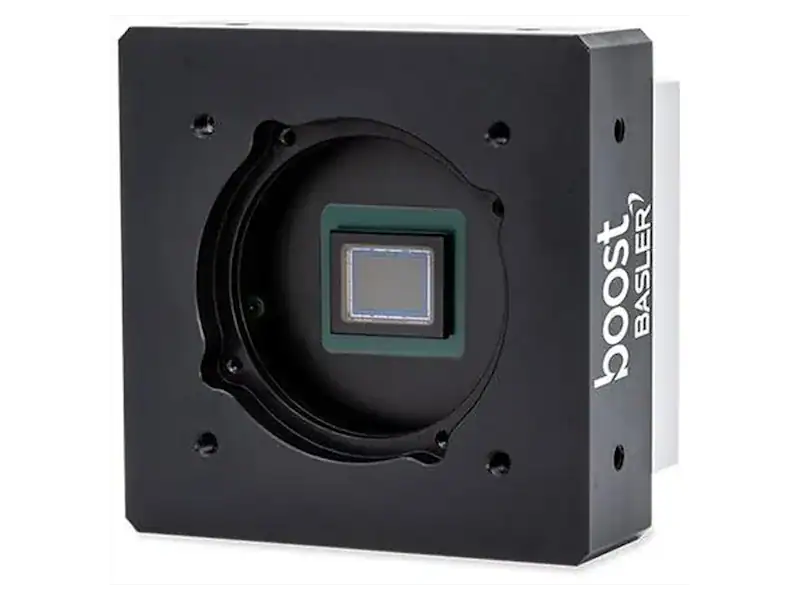

Basler boost cameras are a good choice for applications that require high data rates and resolutions and where the camera’s image data must be transferred over longer distances.

They offer a CoaXPress interface and comply with the CoaXPress 2.0 standard.

CoaXPress 2.0 offers very high bandwidths of up to 12.5 Gbps per cable. Using PoCXP, you only need one coaxial cable for both data transmission and power supply. Cables in lengths of up to 30 meters are available.

The Basler boost camera is available with up to four CXP-12 connections, several resolutions, speeds, and with sensors from leading manufacturers.

Key features of Boost series cameras:

• Suitable for systems with high demands
• Equipped with modern CMOS sensors
• Available with resolutions from 3 to 65 MP
• Frame rates ranging from 19 to 400 fps
• Lens mounts: F-mount, M42x0.75, M42x1, and C-mount
• Equipped with a global shutter
• CoaXPress 2.0 for fast data transmissions
• Connectable via standard 75-ohm coaxial cable
• Possibility to use longer cables
