      Blaze-102
      รหัสสินค้า: blaze-102 หมวดหมู่: , , , ป้ายกำกับ: , , ,

      Blaze-102

      (9 บทวิจารณ์จากลูกค้า)

      Displayed prices differing from actual price.
      Please contact us for quotation.
      ติดต่อเรา เพื่อสอบถามราคา

      • 0.3 MP
      • Mono
      • 30fps
      • GigE

      Download:   blaze-102

      Add to Wishlist
      Send Inquiry
      Send Inquiry
      Color

      Mono

      Frame rate

      30

      Interface

      GigE

      Resolution

      Blaze-102

      Blaze-102 ,

      Basler ToF Camerablaze-102

      • 0.3 MP Resolution (MP)
      • 30 fps Frame rate
      • GigE Interface
      • 850 nm Wavelength

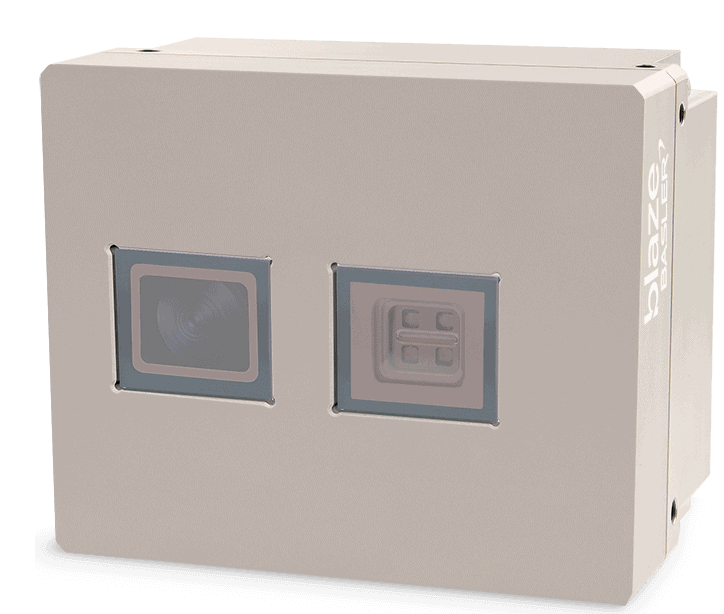

      The Basler blaze-102 Time-of-Flight (ToF) camera provides high-resolution 3D images with near-millimeter accuracy. It has high robustness against stray light for precise indoor 3D imaging. With low power consumption and reduced heat generation, this ToF camera operates in the near-infrared wavelength range of 850 nm.

      Easy commissioning and integration of the Basler ToF Camera is ensured by the pylon software with the complementary Supplementary Package.

      The highlights of the Basler blaze camera at a glance

      • Outstanding 3D imaging with the latest Sony DepthSense™ IMX556PLR sensor technology
      • Precise, almost millimeter-accurate optical measurement with the time-of-flight method
      • Large measuring range, covering approximately two Euro pallets or a small car
      • Real-time streaming of pre-processed 3D point clouds and 2D intensity images
      • Daylight capability and IP67 protection for stable results under difficult conditions
      • Light and contrast independent
      • Easy system integration thanks to compact design and Gigabit Ethernet
      • User-friendly and platform-independent programming interface with sample programs
      • Reliable operation in multi-camera systems without mutual interference

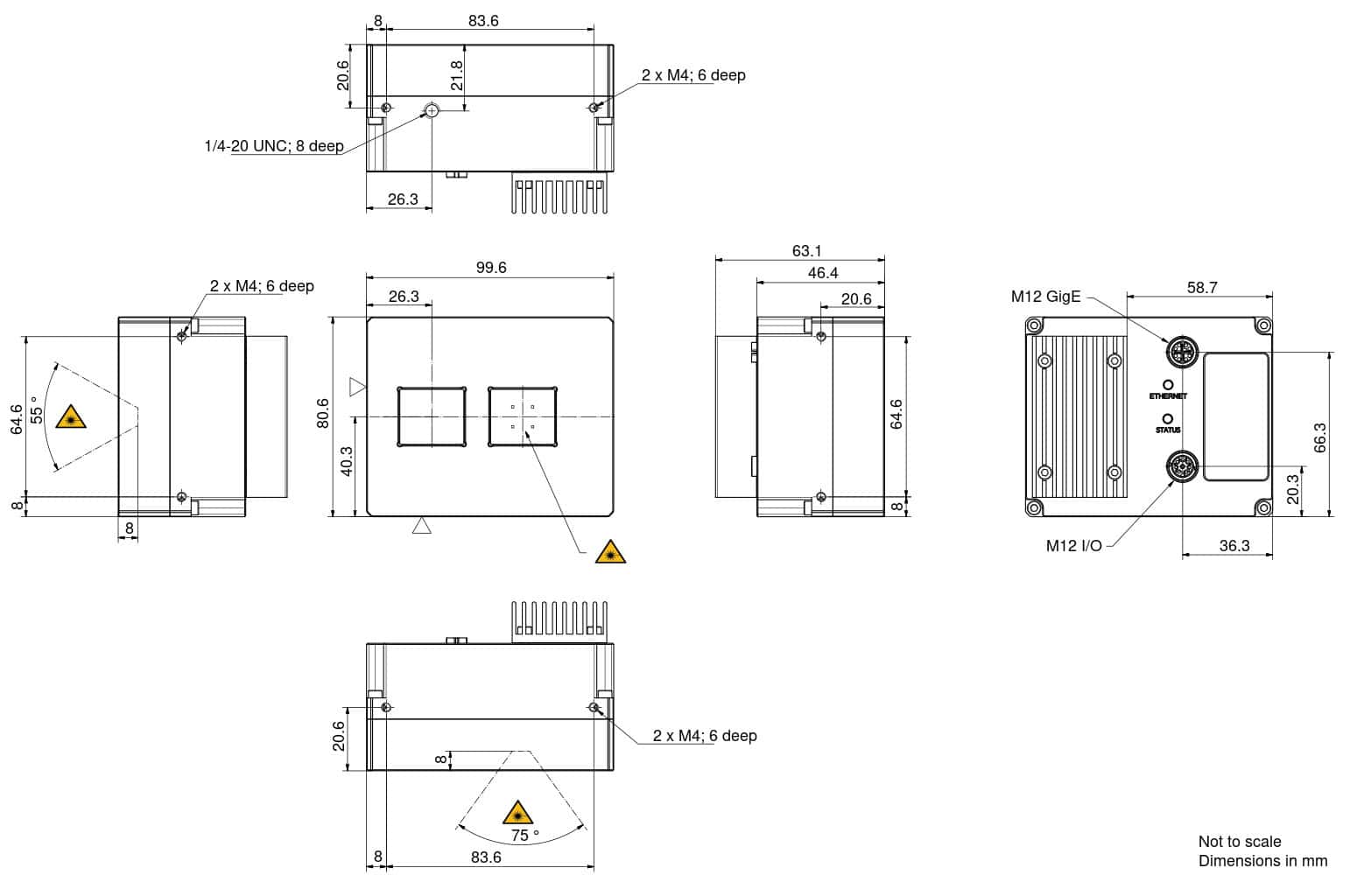

      Mechanical drawing for Blaze-102

      Blaze-102 drawing
