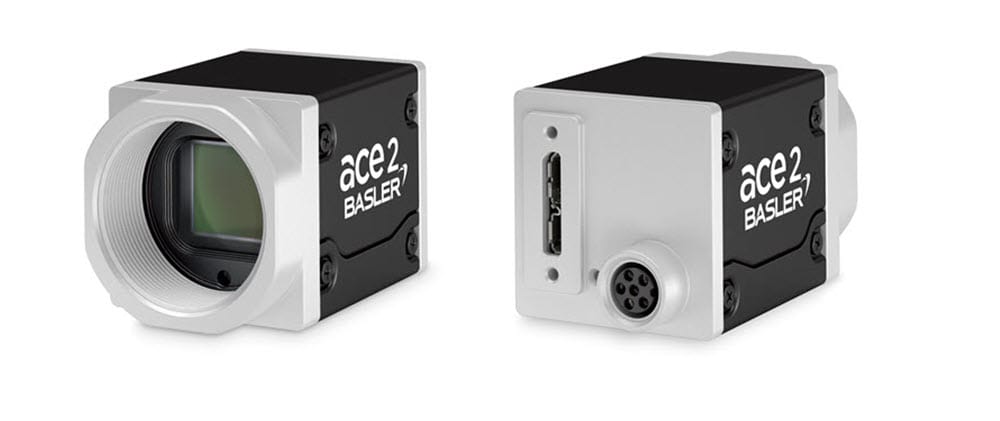

The Basler ace 2 X camera a2A2840-48umUV is powered by a Sony IMX487 sensor. With a USB 3.0 interface, this ultraviolet (UV) camera can take pictures in the invisible light spectrum at wavelengths between 200 and 400 nm, which is the best UV range for industrial inspections.

Main features of ace 2 UV cameras:

• Make visible what the human eye cannot see
• Can see inside a product
• Perfect for inspection, material sorting, and verification of ID documents and banknotes
• Available with 5GigE, GigE, or USB 3.0
• Equipped with Sony IMX487 sensor, 8.1 MP resolution
• Global shutter
• Frame rates: 67 fps, 48 fps, and 14 fps (depending on the interface)
• Compact size of 29 x 29 mm
• SLP function for light source connection and control

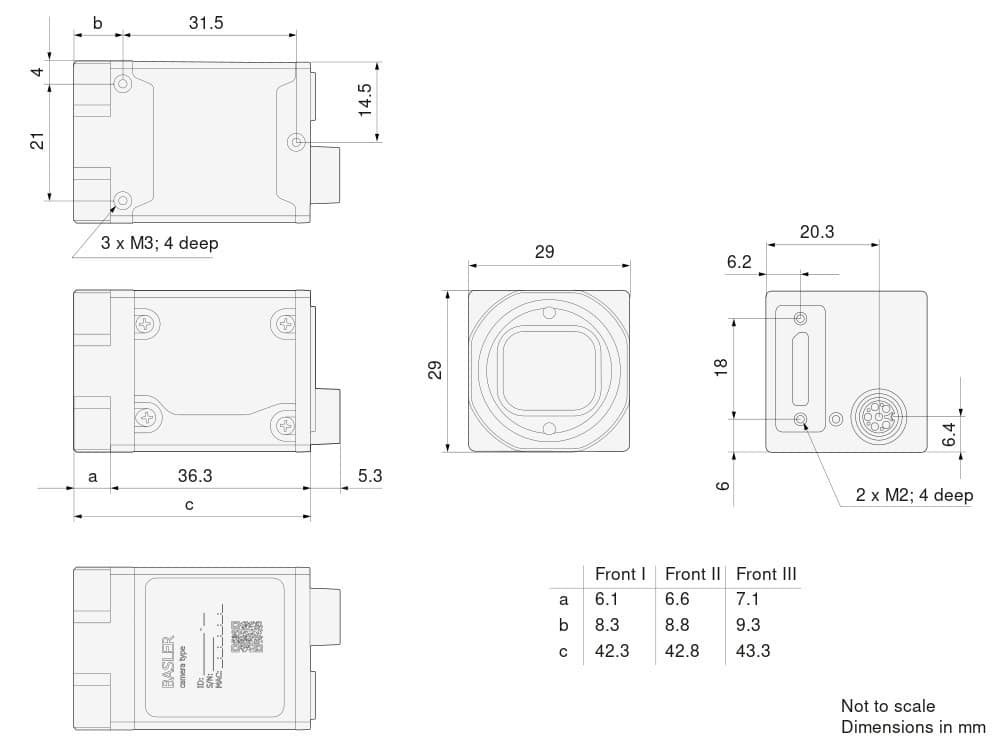

Mechanical drawing for a2A2840-48umUV
